- dc 12v dual programmable relay control board cycle delay timer switch module new
12v Motor CW/CCW/ Control Board / Driver Programmable Delay Timing Relay 12V DC
Motor Type: DC Motor
12v Motor CW/CCW/ Control Board / Driver Board / Programmable Delay Timing Relay 12V DC
This product has two major functions, which can basically meet the requirements of motor operation, and can be customized if other requirements are required;
The function mode can be set freely by the customer, and the power-off automatically memorizes the function and time set last time, which is convenient to use.
Function 1: P-1:
Give signal 1, the motor rotates forward, and after the delay time X, it will stop automatically.
For signal 2, the motor is reversed and the delay time X is automatically stopped.
During the delay period, the trigger again can be freely set:
A: The trigger is invalid again;
B: Trigger re-timed again;
C: The reset timing is triggered again and the motor stops immediately.
If the delay time is set to 0;
Give signal 1, the motor rotates forward and keeps forward;
For signal 2, the motor is reversed and remains inverted.
Function 2: P-2:
No signal terminal is required, the motor is automatically powered CW/CCW;
Specific working mode: stop Y (seconds, minutes) - forward X (seconds, minutes) - stop Y (seconds, minutes) - reverse X (seconds, minutes) ... cycle work. ...cycle work.
If the stop delay time is set to 0;
The specific working mode is turning X (seconds, minutes) - reverse X (seconds, minutes) - forward X (seconds, minutes) - reverse X (seconds, minutes) ... cycle work.
Delay time range: 0.1 seconds for 9 seconds, 1 second to 999 seconds, 1 minute to 999 minutes, the customer can adjust.
Product detailed parameters:
1. Size: 83mm*46mm*27mm
2. Output capacity: DC motor within DC 12V10A.
3. Working voltage: DC 12V, need other power supply voltage, please contact customer service to customize.
4. Quiescent current: 20mA Operating current: 50mA
5. Signal terminal: low level trigger, can be connected to NPN sensor, proximity switch, button, button switch, etc.
6. After the parameter is cut off, it can be memorized forever. The input and output are isolated by optocoupler to enhance the anti-interference ability.
7. The wire terminals are all equipped with KF7.62 terminal blocks, and the screws are crimped to the large terminals for easy wiring.

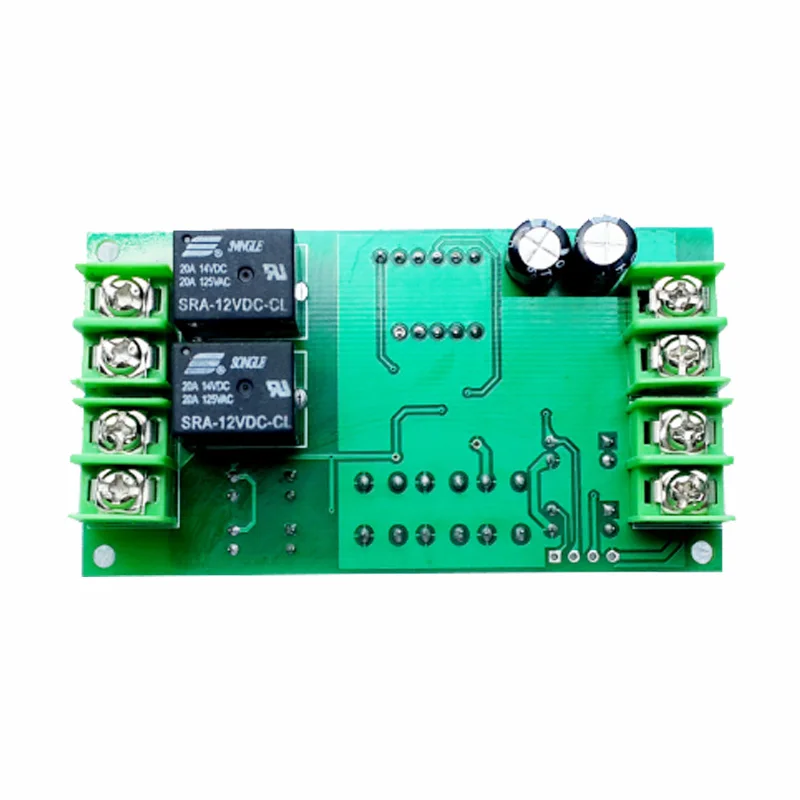

8. The road board is divided into two sides. The front part is mainly the chip components, digital tube and button. On the back are relays, binding posts, and electrolytic capacitors, which make it easy for customers to install panels.
